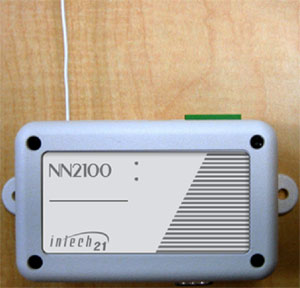

Media Independent Network Node - NN2100
Product Information
NN2100 Wireless Network Node is a data collection and communication device for the wireless controllers/sensors (Temperature sensors) in the facility.
The Network Node has an onboard radio communication module, which uses schematics and PCB layout of the I21RU4 module developed by Intech 21.
NN2100 is an integral part of a wireless network system.
NN2100 is a device, which receives and retransmits data packets in order to provide the most effective wireless communication system operation.
Technical Specifications:
| Power Supply: | 8-12VDC |
| Rated Current: | 0.03A |
| Temperature accuracy: | +/- 1ºF |
Communications:
| Wireless: | RF module I21RU4, FCC ID: P8AI21RU4 |
| Frequency: | 908 – 928MHz ISM band |
| Output Power: | 0dbm +/- 2bd |
| Wireless Data-rate: | 19.2kbs |
| Wired interface: | RS232: 9600bps RS485: 9600bps |
| Environmental conditions: | 10ºF - 140ºF (95% humidity without condensation) |
| Physical dimensions: | H = 1.1”; W = 2.6”; D = 5.4” |
| Weight: | 0.3lb |
